Vaporizer Battery

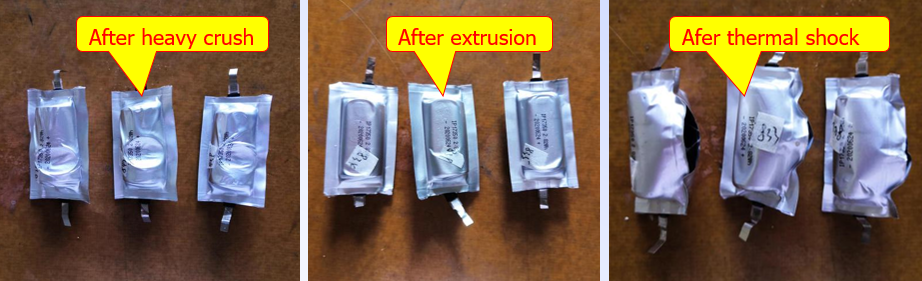

Safety:
IP is equipped with high-precision automated production lines, a strict quality control system and a lean management system, ensuring stable, safe and reliable product quality.
High discharge rate and stable platform:

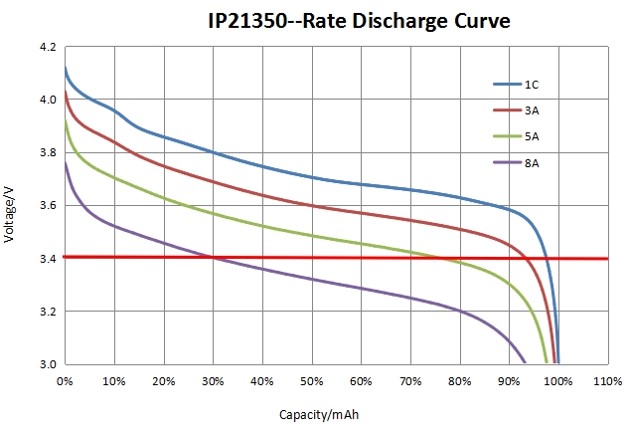

IP is in a leading position in the field of high-rate and high-power lithium polymer batteries. By selecting high-quality raw materials, adopting advanced cell design and unique production processes, the internal resistance of the battery is effectively reduced and the battery platform is improved. Take model 21350 as an example: the capacity is 93.1%, at 3.4V and above during 3A discharge , with high and stable output voltage.
Take model 21350 as an example: the capacity is 93.1%, at 3.4V and above during 3A discharge , with high and stable output voltage.
Low self-discharge:
The monthly self-discharge rate is about 1.5%. Even if not used for a long time, IP battery can still maintain a relatively high voltage and capacity.
Battery Storage Performance Parameter Table
| Storage time (RT) | Maintain capacity (%) | Voltage (V) | Daily voltage drop (mV/d) |
|---|---|---|---|
| 1 month | 96.2% | 4.1662 | 1.13 |
| 2 months | 95.1% | 4.1542 | 0.76 |
| 3 months | 92.2% | 4.1378 | 0.69 |
| 4 months | 91.4% | 4.1285 | 0.60 |
| 5 months | 90.9% | 4.1170 | 0.55 |
| 6 months | 89.7% | 4.1164 | 0.46 |
| 7 months | 88.4% | 4.1123 | 0.42 |
| 8 months | 87.6% | 4.1118 | 0.37 |
| 9 months | 86.7% | 4.1040 | 0.36 |
| 10 months | 86.1% | 4.1057 | 0.31 |
| 11 months | 85.4% | 4.0967 | 0.31 |
| 12 months | 84.5% | 4.0937 | 0.30 |
| 13 months | 83.8% | 4.0835 | 0.30 |
| 14 months | 83.2% | 4.0811 | 0.28 |
| 15 months | 82.1% | 4.0745 | 0.28 |
| 16 months | 81.7% | 4.0695 | 0.27 |
| 17 months | 81.3% | 4.0661 | 0.26 |
| 18 months | 80.4% | 4.0625 | 0.25 |
| Capacity (mAh) | Voltage (V) | Battery Cell Model | Discharge rate (A) | Thickness (mm) | Width (mm) | Length (mm) | inkjet printing |
|---|---|---|---|---|---|---|---|
| 400 | 3.7 | IP12350 | 4 | 12.2 | / | 36.5 | IP12350 3.7V 400mAh 1.48Wh - YYYYMMDD + |
| 450 | 3.7 | IP12400 | 5 | 12.2 | / | 41 | IP12400 3.7V 450mAh 1.67Wh - YYYYMMDD + |
| 450 | 3.7 | IP13330 | 5 | 13.5 | / | 33.5 | IP13330 3.7V 450mAh 1.67Wh - YYYYMMDD + |
| 500 | 3.7 | IP13350 | 5 | 13.2 | / | 35 | IP13350 3.7V 500mAh 1.85Wh - YYYYMMDD + |
| 650 | 3.7 | IP13450 | 8 | 13.5 | / | 46 | IP13450 3.7V 650mAh 2.41Wh - YYYYMMDD + |
| 500 | 3.7 | IP14300 | 5 | 14.3 | / | 31 | IP14300 3.7V 500mAh 1.85Wh - YYYYMMDD + |
| 550 | 3.7 | IP14400 | 5 | 14.3 | / | 41 | IP14400 3.7V 550mAh 2.04Wh - YYYYMMDD + |
| 600 | 3.7 | IP15330 | 5 | 15.5 | / | 34 | IP15330 3.7V 600mAh 2.22Wh - YYYYMMDD + |
| 700 | 3.7 | IP15350 | 5 | 15 | / | 36 | IP15350 3.7V 700mAh 2.59Wh - YYYYMMDD + |
| 600 | 3.7 | IP16300 | 5 | 17 | / | 30.5 | IP16300 3.7V 600mAh 2.22Wh - YYYYMMDD + |
| 650 | 3.7 | IP16350 | 8 | 16.5 | / | 36 | IP16350 3.7V 650mAh 2.41Wh - YYYYMMDD + |
| 650 | 3.7 | IP16350 | 5 | 16.2 | / | 36 | IP16350 3.7V 650mAh 2.41Wh - YYYYMMDD + |
| 850 | 3.7 | IP17350 | 8 | 17 | / | 36.5 | IP17350 3.7V 850mAh 3.15Wh - YYYYMMDD + |
| 850 | 3.7 | IP17350 | 5 | 17 | / | 36.5 | IP17350 3.7V 850mAh 3.15Wh - YYYYMMDD + |
| 550 | 3.7 | IP18250 | 5 | 18.5 | / | 26 | IP18250 3.7V 600mAh 2.22Wh - YYYYMMDD + |
| 600 | 3.7 | IP18250 | 8 | 18.5 | / | 26 | IP18250 3.7V 600mAh 2.22Wh - YYYYMMDD + |
| 800 | 3.85 | IP18250 | 8 | 18.5 | / | 26 | IP18250 3.85V 800mAh 3.08Wh - YYYYMMDD + |
| 950 | 3.7 | IP18350 | 8 | 18 | / | 36.5 | IP18350 3.7V 1100mAh 4.07Wh - YYYYMMDD + |
| 1250 | 3.7 | IP18450 | 8 | 18.4 | / | 45.5 | IP18450 3.7V 1250mAh 4.63Wh - YYYYMMDD + |

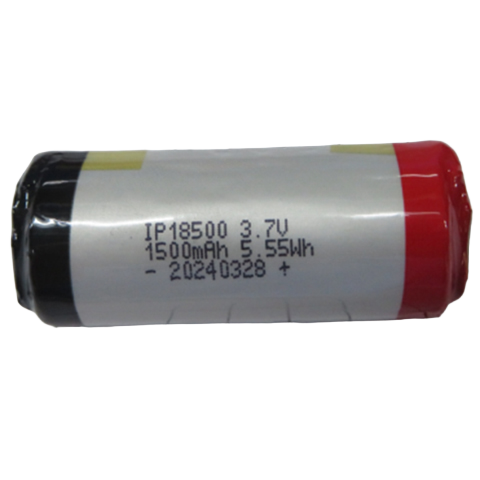

| 1500 | 3.7 | IP18500 | 8 | 18.5 | / | 51.5 | IP18500 3.7V 1500mAh 5.55Wh - YYYYMMDD + |
| 1500 | 3.7 | IP20400 | 8 | 20.5 | / | 41 | IP20400 3.7V 1500mAh 5.55Wh - YYYYMMDD + |

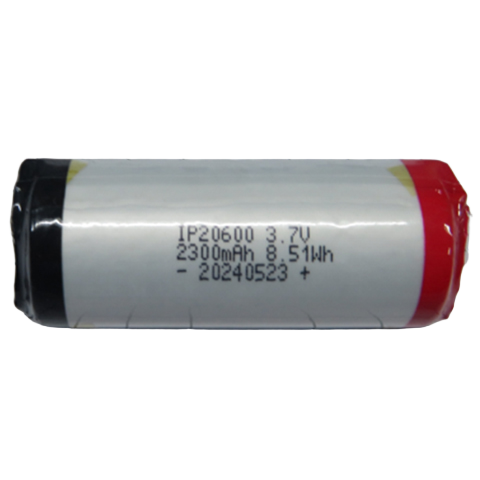

| 2300 | 3.7 | IP20600 | 10 | 20.5 | / | 60.5 | IP20600 3.7V 2300mAh 8.51Wh - YYYYMMDD + |

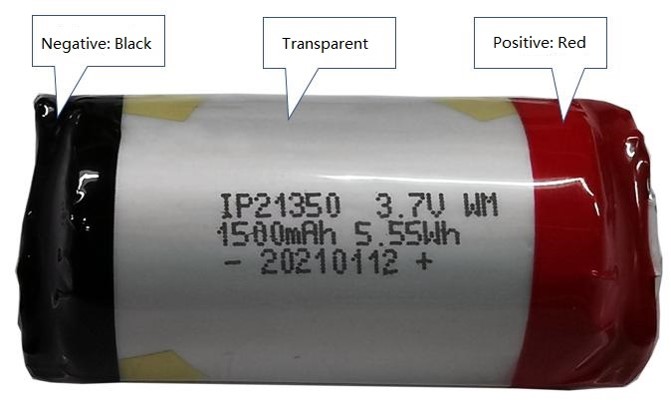

| 1350 | 3.7 | IP21350 | 5 | 21.2 | / | 35.5 | IP21350 3.7V WM 1500mAh 5.55Wh - YYYYMMDD + |
| 1400 | 3.7 | IP21350 | 8 | 21.2 | / | 35.5 | IP21350 3.7V WM 1500mAh 5.55Wh - YYYYMMDD + |
| 900 | 3.7 | IP112040 | 8 | 11.5 | 20.5 | 40 | IP112040 3.7V 1000mAh 3.15Wh - YYYYMMDD + |
| 2900 | 3.7 | IP23600 | 12 | 23.5 | / | 61 | IP23600 3.7V 1500mAh 5.55Wh - YYYYMMDD + |
| 400 | 3.7 | IP801437 | 3 | 8.2 | 14.5 | 39 | - IP801437DR2 3.7V 1.48Wh 400mAh + 20xx-xx-xx |
| 400 | 3.7 | IP801437 | 3 | 8.2 | 14.5 | 39 | - IP801437 3.7V 450mAh 1.67Wh + 20xx-xx-xx |
| 500 | 3.7 | IP801640 | 5 | 9 | 16.5 | 40 | - IP801640DR2 3.7V 500mAh 1.85Wh + 20XX-XX-XX |
| 400 | 3.7 | IP901632 | 3 | 9 | 16.5 | 33 | - IP901632 3.7V 400mAh 1.48Wh + 20XX-XX-XX |
| 400 | 3.7 | IP731933 | 4 | 7.3 | 19 | 34 | - IP731933 3.7V 400mAh 1.48Wh + 20xx-xx-xx |
| 550 | 3.7 | IP901835 | 5 | 9.3 | 18.5 | 37 | - IP901835 3.7V 550mAh 2.04Wh + 20XX-XX-XX |
| 820 | 3.7 | IP101948 | 8 | 10.2 | 19.8 | 48 | - IP101948 3.7V 820mAh 3.04Wh + 20XX-XX-XX |
| 400 | 3.7 | IP102025 | 3 | 10 | 20.5 | 27 | - IP102025 3.7V 400mAh 1.48Wh + 20XX-XX-XX |

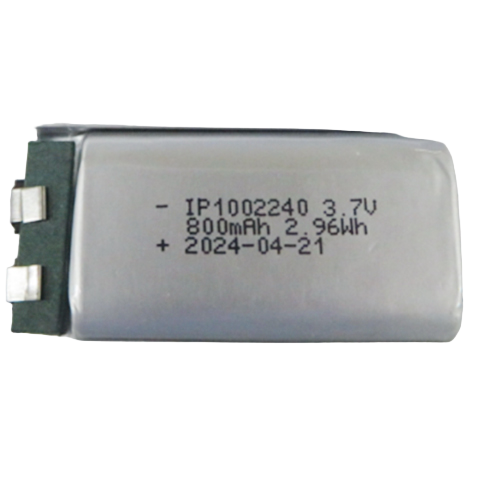

| 800 | 3.7 | IP102240 | 8 | 10 | 22 | 41 | - IP102240 3.7V 800mAh 2.96Wh + 20XX-XX-XX |
| 600 | 3.7 | IP852730 | 5 | 8.5 | 27.5 | 31.5 | - IP852730 3.7V 600mAh 2.22Wh + 20XX-XX-XX |
