Advanced Technology
IP is in a global leading position in the industry of high-rate and high-power lithium polymer batteries. By selecting high-quality raw materials, using advanced designs and unique crafts, the internal resistance of the battery is effectively reduced and the platform is improved, enabling the cell to achieve the high-power discharge performance, can be applied to ignition devices such as cars and motorcycles.

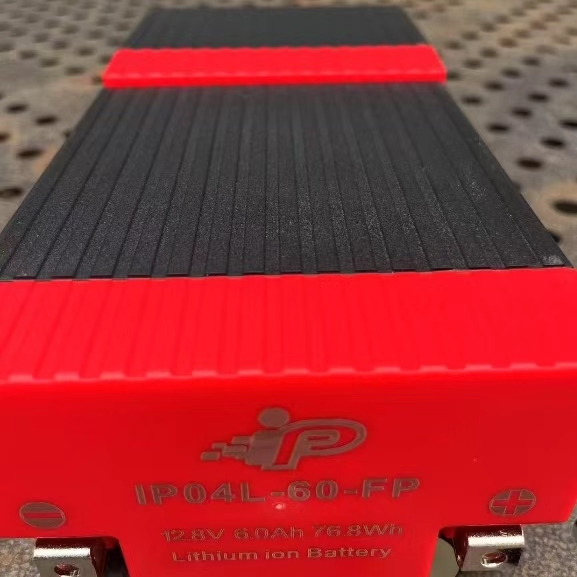

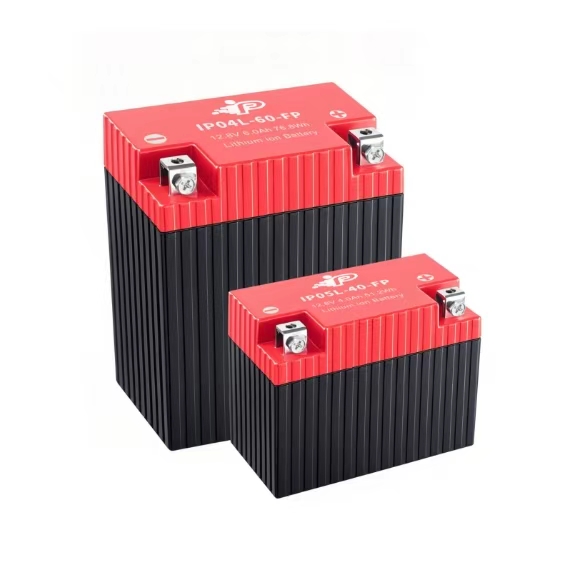

Appearance and Size
The product shell is made of ABS, can ensure normal operation in high and low temperature environments, and the shell is designed to be waterproof.

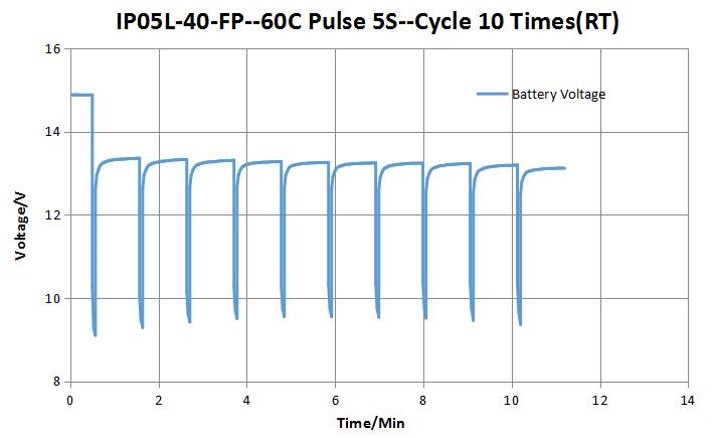

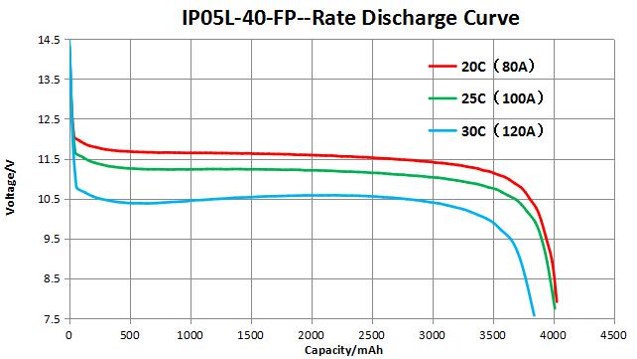

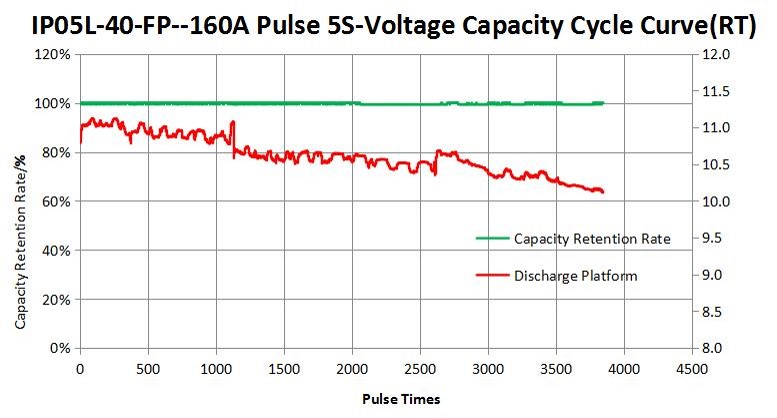

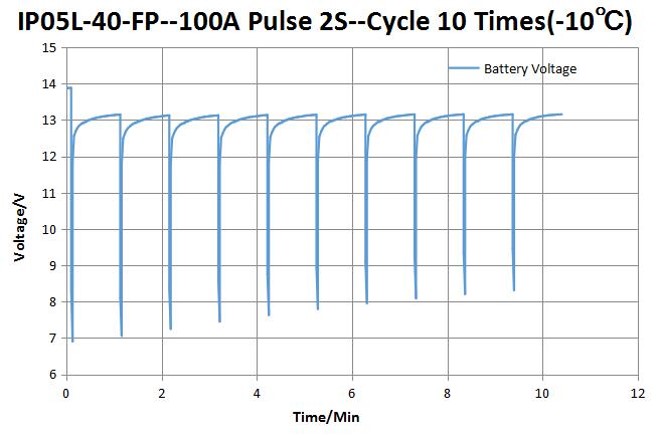

Superior Performance
After crushing
After short circuit
| project | IP LFP-STARTER BATTERY | LEAD ACID STARTER BATTERY |
|---|---|---|
| Safety and Environmental Protecion | IP battery is safer, under harsh tests, it will not fire or explode or smoke, contains no heavy metals or rare metals, is non-toxic and pollution-free, is an absolutely green and environmentally friendly battery. | Safety is acceptable, but it severely pollutes soil and water, damages air quality and ecological balance. It can also cause diseases related to human metabolism, reproduction and nerves, induce malignant tumors in children, and even lead to death. Waste lead-acid batteries are difficult to recycle, and utilization cost is high. |
| Lifespan(Cycle Times) | Under room temperature, cycle 2000 times by 1C charge and discharge, capaciy keep at above 80%(theoretical cycle 3000 times). | Life is short, under 100% DOD condition, can only cycle about 150 times, need frequent maintenance |
| Energy Density | High, besides under the same energy, the volume of IP starter battery is about 1/3 that of the lead-acid battery, and the weight is about 1/4 that of the lead-acid battery. | low |
| Cost of Usage | Economic | High |
| Temperature Range | Use at -20℃~70℃ | Use at -20℃~55℃ |
| Self Discharge | Self-discharge is low, about 1.5% per month, and can store for 2 to 3 years without recharging. | Self discharge is high, need to charge every month |
| Discharge Power | High, can reach to 3500W/kg | Low, only about 300W/kg |
| Energy Effeciency | High, internal resistance is small, output power is very high | Low |
| Charge Time | normally one hour, if fast charging only takes 15-30mins | High, 7-8hours |
| serial number | Product Model | Voltage/Capacity | CCA(A) | Application scope of motorcycles | Specification for replacing lead-acid batteries | Finished product size (mm) | Finished product weight (g) |
|---|---|---|---|---|---|---|---|

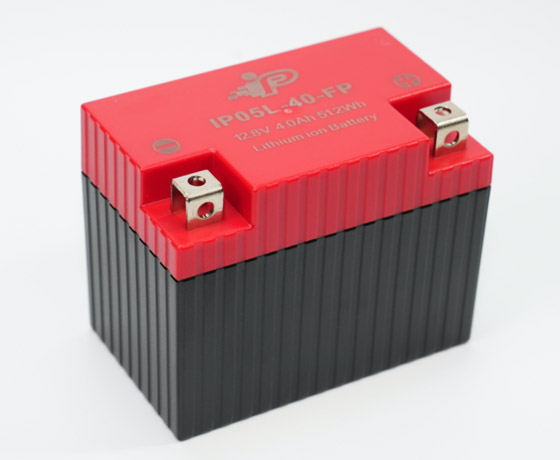

| 1 | IP05L-40-FP | 12.8V 4000mAh | 240 | 150-350CC engine |
YTX4L-BS, YTX5L-BS, YTX7A-BS,
YT4L-BS, YTZ6V, YT7B-BS,
YTZ4V, YT5A, YT7B-4,
YTZ5S-BS、YT6A、YTZ10S、
YB4L-A, YB5L-B, YT9B-BS,
YB4L-B、12N5-3B、YTR9-BS、
YTX9-BS
|
114*70*90 | 665+/-35g |

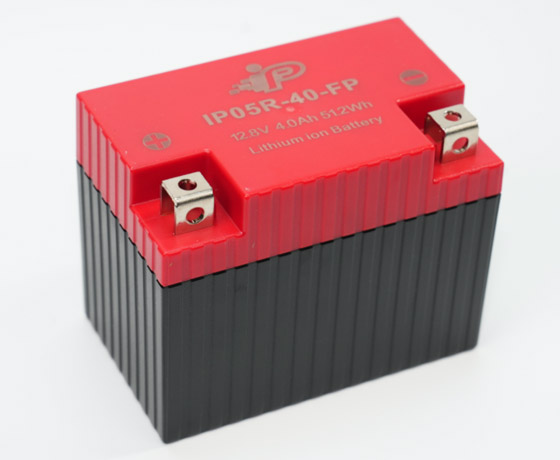

| 2 | IP05R-40-FP | 12.8V 4000mAh | 240 | 150-350CC engine |
12N5-4B、
12N5.5-4A、
12N5.5-4B
|
114*70*90 | 665+/-35g |

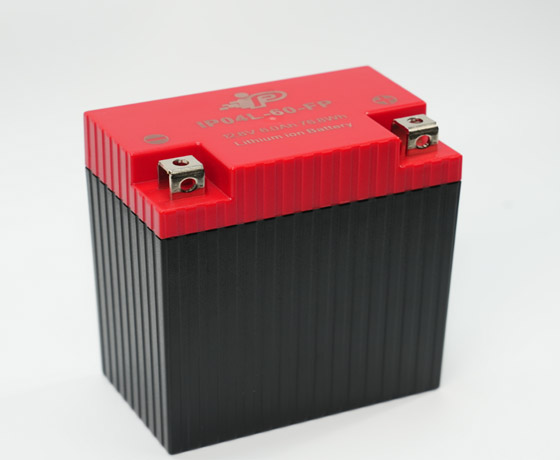

| 3 | IP04L-60-FP | 12.8V 6000mAh | 360 | 300-500CC engine |
YTX7L-BS、YB9L-A2、12N5.5-3B、
YTZ7S、YB9L-B、12N6.5-3B、
YTZ7V、YB10L-A2、12N7-3B、
YTZ8V、YB10L-B、12N7A-3A、
YB7C-A、YB10L-BP、12N7A-3B、
YB7L-B, YB10L-B2, 12N7B-3A,
YB7L-B2, YB6L-B, 12N7D-3B,
YB7B-B
|
114*70*131 | 940+/-45g |

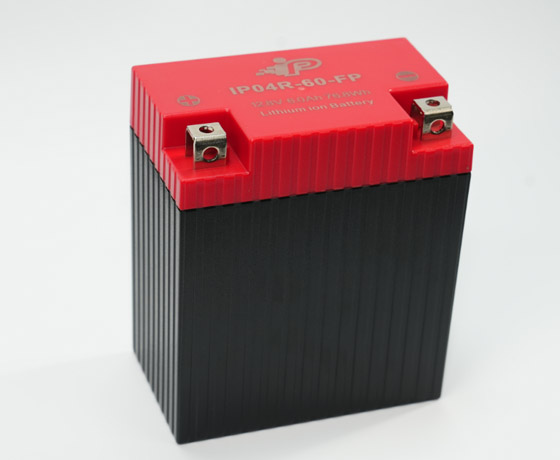

| 4 | IP04R-60-FP | 12.8V 6000mAh | 360 | 300-500CC engine |
12N7-4A、YB9-B、
12N7-4B、YB9A-A、
YB7-A、12N9-4B-1
|
114*70*131 | 940+/-45g |

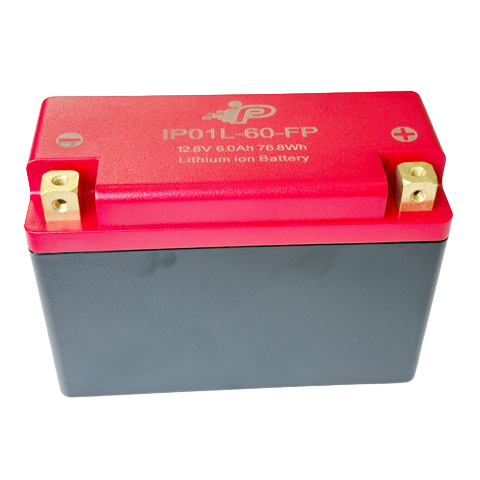

| 5 | IP01L-60-FP | 12.8V 6000mAh | 360 | 300-500CC engine |
YTX7L-BS、YB9L-A2、12N5.5-3B、
YTZ7S、YB9L-B、12N6.5-3B、
YTZ7V、YB10L-A2、12N7-3B、
YTZ8V、YB10L-B、12N7A-3A、
YB7C-A、YB10L-BP、12N7A-3B、
YB7L-B, YB10L-B2, 12N7B-3A,
YB7L-B2, YB6L-B, 12N7D-3B,
YB7B-B
|
149*67*106 | 1035+/-45g |

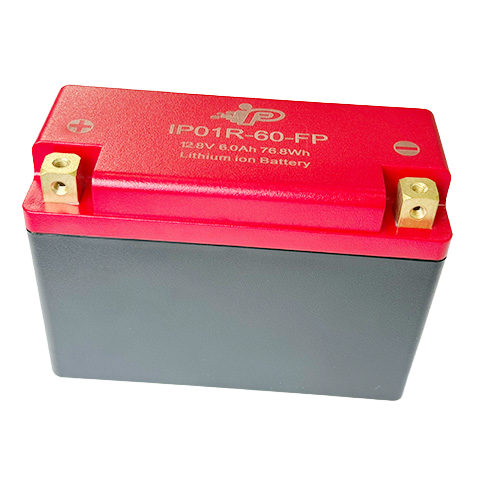

| 6 | IP01R-60-FP | 12.8V 6000mAh | 360 | 300-500CC engine |
12N7-4A、YB9-B、
12N7-4B、YB9A-A、
YB7-A、12N9-4B-1
|
149*67*106 | 1035+/-45g |

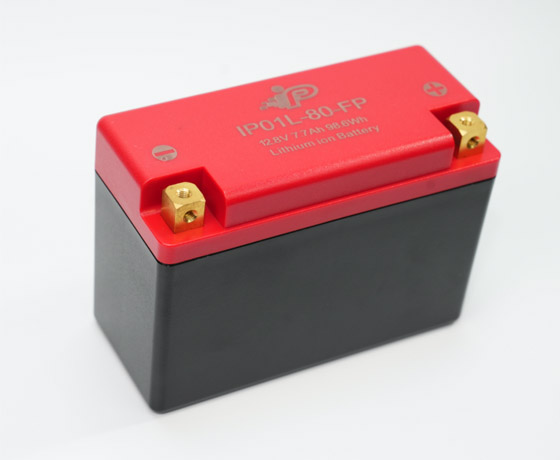

| 7 | IP01L-80-FP | 12.8V 7700mAh | 480 | 400-600CC engine |
YB16AL-A2,YTX14L,YTX15L,
12N12-3B, YTX14L-BS, YTX15L-BS
|
149*67*106 | 1170+/-55g |

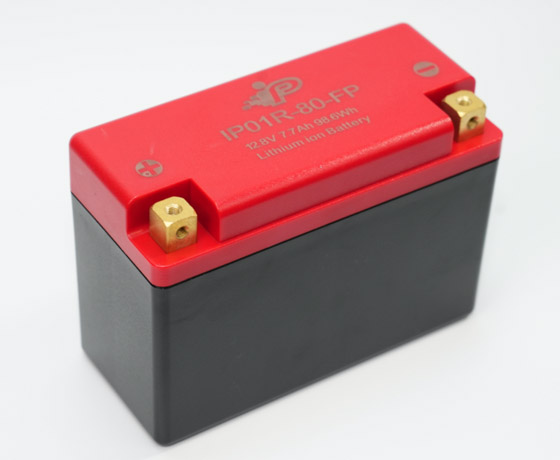

| 8 | IP01R-80-FP | 12.8V 7700mAh | 480 | 400-600CC engine |
YTX12, YT12B, YT14B-BS,
YTX12-BS, YT12B-BS, YB12B-B2,
YTX12A-BS, YT12B-4, YTZ12S,
YTZ14S
|
149*67*106 | 1170+/-65g |
